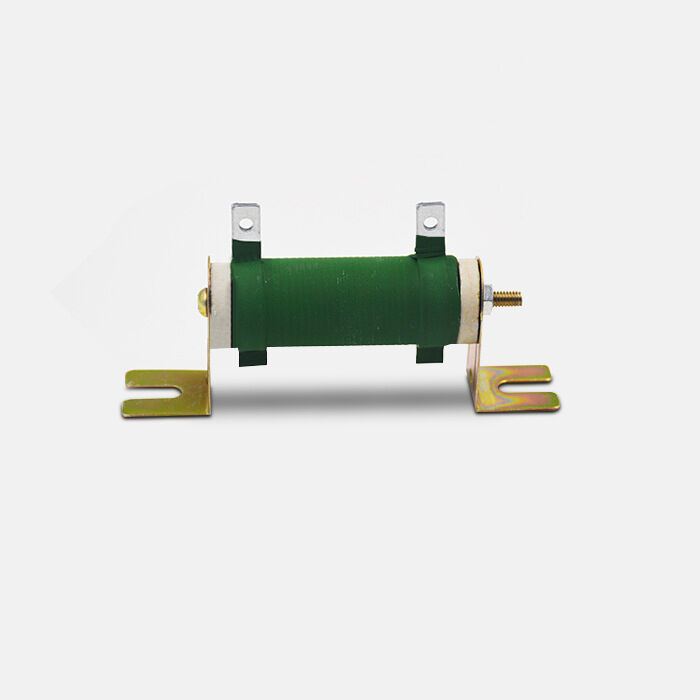

2000W High Power Ceramic Resistor with 8 Ohm Resistance and Ceramic Composition
  • 2000W High Power Ceramic Resistor with 8 Ohm Resistance and Ceramic Composition
  • 2000W High Power Ceramic Resistor with 8 Ohm Resistance and Ceramic Composition
  • 2000W High Power Ceramic Resistor with 8 Ohm Resistance and Ceramic Composition
  • 2000W High Power Ceramic Resistor with 8 Ohm Resistance and Ceramic Composition
  • 2000W High Power Ceramic Resistor with 8 Ohm Resistance and Ceramic Composition
  • 2000W High Power Ceramic Resistor with 8 Ohm Resistance and Ceramic Composition
2000W High Power Ceramic Resistor with 8 Ohm Resistance and Ceramic Composition

2000W High Power Ceramic Resistor with 8 Ohm Resistance and Ceramic Composition

Lugar de origen Sichuan, China
Nombre de la marca bonens
Número de modelo Cerámica 2000W 8ohm
Detalles del producto
Resistencia:
1Ω-10KΩ
Tolerancia a la resistencia:
± 5%
Tipo:
Resistor fijo
tecnología:
Composición cerámica
Tipo de paquete:
A través del agujero
potencia nominal:
2000 vatios
Coeficiente de temperatura:
± 250ppm
Dimensiones D:
60±2mm
Las dimensiones L1:
510±2mm
Las dimensiones L2:
540±5mm
Dimensiones L3:
560±3mm
Dimensiones norte:
16±1 milímetro
Dimensiones Φ:
6 ± 1 mm
Peso de referencia:
2.3 kg
Exactitud de la resistencia:
± 5%
Resaltar:

2000W Wirewound Resistor

,

8 Ohm Ceramic Resistor

,

Ceramic Composition High Power Resistor

Pago y términos de envío
Cantidad de orden mínima
1
Descripción de producto
High Power 8 Ohm Ceramic Resistor 2000W
2000W High Power Ceramic Resistor with 8 Ohm Resistance and Ceramic Composition 0
Product Features
2000W High Power Ceramic Resistor with 8 Ohm Resistance and Ceramic Composition 1 2000W High Power Ceramic Resistor with 8 Ohm Resistance and Ceramic Composition 2 2000W High Power Ceramic Resistor with 8 Ohm Resistance and Ceramic Composition 3 2000W High Power Ceramic Resistor with 8 Ohm Resistance and Ceramic Composition 4 2000W High Power Ceramic Resistor with 8 Ohm Resistance and Ceramic Composition 5 2000W High Power Ceramic Resistor with 8 Ohm Resistance and Ceramic Composition 6
Product Specifications & Dimensions
2000W High Power Ceramic Resistor with 8 Ohm Resistance and Ceramic Composition 7
Rated Power (W) D±2 (mm) L1±2 (mm) L2±5 (mm) L3±3 (mm) N±1 (mm) Φ±1 (mm) Reference Weight (kg) Resistance Accuracy Temperature Coefficient
10W1440//530.02±5%±250ppm
15W1445//530.02
20W165085100630.05
25W205085100630.05
30W2070105120630.06
40W2090125140630.08
50W2890130150940.1
75W28140180200940.15
100W28170210230940.18
150W28215250270940.22
200W28267300320940.23
250W28267300320940.32
300W402672873071260.32
400W403003202401260.36
500W503003203401460.55
600W503003203401460.95
800W603003303351661
1000W703003303351661.2
1200W703603904151661.6
1500W704204504701662
2000W605105405601662.3
2500W705105405601662.7
3000W804304705001663
4000W1004004404651673.5
5000W1005005405601674.5
6000W1006006406601675.8
8000W150600690740251518
9000W150600690740251518
10KW150600690740251518
RX20/RXG20 Load Resistor & Braking Resistor
High-power corrugated wire-wound resistor suitable for braking, load, inverter discharge, and aging load applications. Available resistance values from 0.1Ω to 10kΩ.
Product Gallery
2000W High Power Ceramic Resistor with 8 Ohm Resistance and Ceramic Composition 8
Product Packaging
2000W High Power Ceramic Resistor with 8 Ohm Resistance and Ceramic Composition 9
Key Features
  • Resistance surface is painted with wide power range capability
  • Excellent high temperature load performance
  • Full welded structure for enhanced durability
  • High reliability and long service life
