3000W Aluminum Housed Ceramic Composition Wirewound Braking Resistor for Load Applications
  • 3000W Aluminum Housed Ceramic Composition Wirewound Braking Resistor for Load Applications
  • 3000W Aluminum Housed Ceramic Composition Wirewound Braking Resistor for Load Applications
  • 3000W Aluminum Housed Ceramic Composition Wirewound Braking Resistor for Load Applications
  • 3000W Aluminum Housed Ceramic Composition Wirewound Braking Resistor for Load Applications
  • 3000W Aluminum Housed Ceramic Composition Wirewound Braking Resistor for Load Applications
  • 3000W Aluminum Housed Ceramic Composition Wirewound Braking Resistor for Load Applications
3000W Aluminum Housed Ceramic Composition Wirewound Braking Resistor for Load Applications

3000W Aluminum Housed Ceramic Composition Wirewound Braking Resistor for Load Applications

Lugar de origen Sichuan, China
Nombre de la marca BONENS
Número de modelo RX20-500W
Detalles del producto
Resistencia:
1Ω-30KΩ
Tolerancia a la resistencia:
± 5%, ± 5%
Coeficiente de temperatura:
150 ppm
potencia nominal:
10w-5000W
Composición:
Composición cerámica
Tipo de paquete:
A través del agujero
Tipo:
Fijado
Longitud:
430 mm
Diámetro:
80mm
Valor de la resistencia:
1R 2R 3R 4R 6R....10KR
Rango de tolerancia de resistencia:
±1%(F), ±2%(G), ±5%(J), ±10%(K)
Rango de coeficiente de temperatura:
≤±250 ppm/℃
Temperatura ambiente:
-55℃～+155℃
tecnología:
Envase de cable
Función:
Freno/resistencia de freno
Resaltar:

3000W Wirewound Resistor

,

Aluminum Housed Braking Resistor

,

Ceramic Composition Load Resistor

Pago y términos de envío
Cantidad de orden mínima
1
Descripción de producto
Customized 300W Aluminum Housed Wirewound Load Resistor Supply
Product Overview

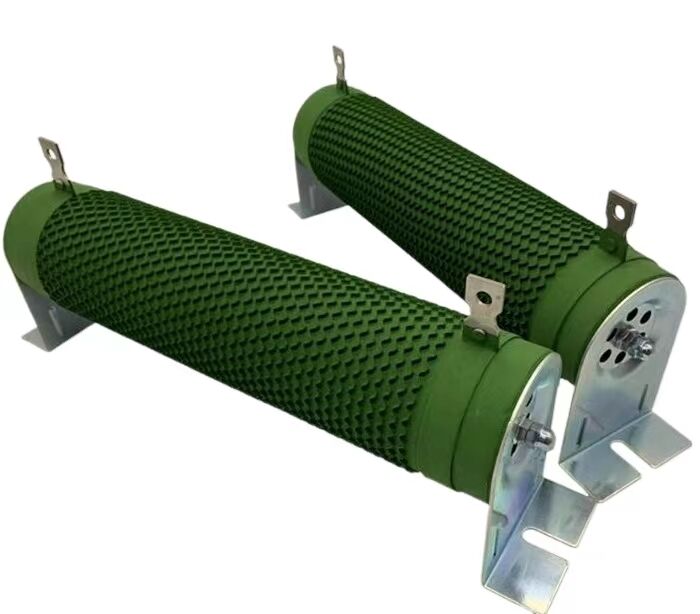

Green ripple wirewound painted Braking Resistor 3000W designed for industrial applications requiring reliable power dissipation and load testing.
3000W Aluminum Housed Ceramic Composition Wirewound Braking Resistor for Load Applications 0 3000W Aluminum Housed Ceramic Composition Wirewound Braking Resistor for Load Applications 1 3000W Aluminum Housed Ceramic Composition Wirewound Braking Resistor for Load Applications 2 3000W Aluminum Housed Ceramic Composition Wirewound Braking Resistor for Load Applications 3 3000W Aluminum Housed Ceramic Composition Wirewound Braking Resistor for Load Applications 4 3000W Aluminum Housed Ceramic Composition Wirewound Braking Resistor for Load Applications 5 3000W Aluminum Housed Ceramic Composition Wirewound Braking Resistor for Load Applications 6 3000W Aluminum Housed Ceramic Composition Wirewound Braking Resistor for Load Applications 7
Product Specifications
Product Name Painted Tubular Ceramic Inductive Resistor
Rated Power 3000W
Type Fixed
Size 430mm length & 80mm diameter (Can be customized according to customer requirements)
Color Green
Resistance Value 1R 2R 3R 4R 6R.......10KR
Resistance Tolerance ±1%(F), ±2%(G), ±5%(J), ±10%(K)
Temperature Coefficient ≤±250ppm/℃
Ambient Temperature -55℃～+155℃
Application Load test, equipment discharge, automatic control, frequency converter, etc.
3000W Aluminum Housed Ceramic Composition Wirewound Braking Resistor for Load Applications 8 3000W Aluminum Housed Ceramic Composition Wirewound Braking Resistor for Load Applications 9 3000W Aluminum Housed Ceramic Composition Wirewound Braking Resistor for Load Applications 10
Key Features
  • High power rating of 3000W for demanding applications
  • Customizable dimensions to fit specific requirements
  • Wide resistance range from 1R to 10KR
  • Multiple tolerance options for precision applications
  • Excellent temperature stability with low coefficient
  • Robust construction for industrial environments
Manufacturer Profile
Professional manufacturer specializing in high-quality industrial resistors and electrical components with extensive experience in custom solutions.
3000W Aluminum Housed Ceramic Composition Wirewound Braking Resistor for Load Applications 11 3000W Aluminum Housed Ceramic Composition Wirewound Braking Resistor for Load Applications 12 3000W Aluminum Housed Ceramic Composition Wirewound Braking Resistor for Load Applications 13 3000W Aluminum Housed Ceramic Composition Wirewound Braking Resistor for Load Applications 14
