high power rf resistors
Resistente de RF Resistente de carga ficticia con -55 °C ~ + 125 °C Temperatura de funcionamiento 1.2 ~ 1.3 Relación de onda permanente y montura de brida recubierta de cobre.
RIG RF resistor flange mount 100 ohms 50ohms dummy load resistorCustom designs available RF Attenuators and RF Resistors and RF Terminations. Product Description The following are the commonly used sizes, we can also customize the size according to your requirements Electrical Characteristics:Range of nominal resistance1 ~500ΩResistance tolerance±5%Frequency range0~2GHzStanding wave ratio1.2~1.3Insulation resistance≥ 1GΩWithstand voltage500V/1 mm (Substrate thickness
Resistor RF montado en brida con resistencia de 1 a 100 Ohms, tolerancia de ± 5% y rango de frecuencia DC-1GHZ
Product Description RFG RFR RFT 5W 10W 20W 50W 10W 150W 250W 400W 800W 1000W 50R 100R 50 ohm 100 ohm Power RF TERMINATION RESISTOR. BONENSSmall size, high power, stable and reliable performance, easy installation Electrical CharacteristicsRange of nominal resistance:1Ω-500ΩResistance tolerance: ±5%Frequency range: 0~2GHzStanding wave ratio: 1.2~1.3Insulation resistance: ≥ 1GΩWithstand voltage: 500V/1 mm (Substrate thickness) Physical CharacteristicsTerminal strength(10N,5S):
1000W Flange Resistor with 1Ω-500Ω Range ±5% Tolerance and 1.2-1.3 Standing Wave Ratio for High Power Applications

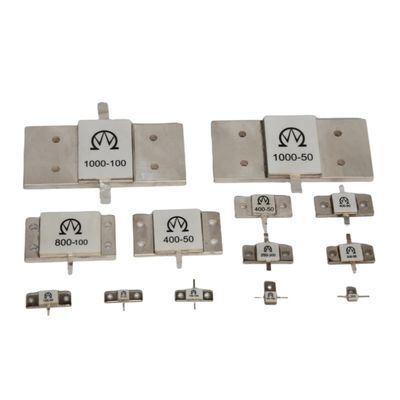

Aluminum Housing Resistor with Flange Mount RIG Series RIG RF Resistance, Microstrip Resistor, Microwave Attenuator BONENS high power RF resistor available in 1000W, 2000W, 800W, 500W, 250W, 100W, 60W, 40W, and 30W flange resistor models with 50Ω and 100Ω options. Features: Small size with high power capacity Stable and reliable performance Easy installation Electrical Characteristics Range of nominal resistance 1Ω-500Ω Resistance tolerance ±5% Frequency range 0~2GHz Standing
250 Watt 100 Ohms Resistor de terminación de RF con disipador de calor recubierto de cobre y níquel para 0 ~ 1.5 GHz Frecuencia y rango de temperatura -55 ~ + 125 °C
Product Description 250 Watt 100 ohms RF Termination resistor Other commonly used ratings powerFor enquiries, please specify : 1.power and resistance 2. need single lead or double leads Specification ElectricalCharacteristicsRange of nominal resistance10Ω~500ΩResistance tolerance±2%, ±5%Frequency0 ~2GHZWistand Voltage500V/1mmInsulation resistance≥ 1GΩStanding wave rate1.2-1.3EnvironmentCharacteristicsRated power1-1200WTemperature range-55°C~+125°CTCR≤±200PPM/°CTemperature

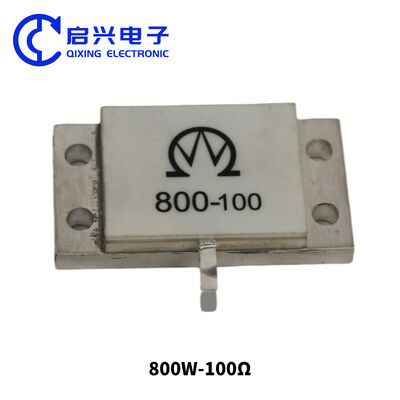

RIG Resistor RF de alta potencia de 800 W con montura de brida 50 ohm 100 ohm Frecuencia DC-1GHZ
Terminaciones de montaje en brida RF de 800 W (50 Ω/100 Ω) con tolerancia de ±5 %, 1,2:1 SWR hasta 1 GHz. Certificado RoHS/ISO9001, funciona entre -55 ℃ y +165 ℃. Paquete BeO compacto con opciones de 1 a 2 pines para aplicaciones confiables de alta potencia.
Resistor RF de montaje de brida de 500W 50 Ohm con terminación de alta potencia
Resistencia RF de montaje en brida de 500 W con rango de 10-500 Ω, tolerancia de ±5 % y excelente rendimiento de frecuencia de 0-2 GHz. Cuenta con certificaciones RoHS, TUV, ISO9001, diseño compacto y funcionamiento estable de -55 ℃ a +165 ℃ para un uso confiable en sistemas de comunicación.
High Power 60W 100R Flange Resistor with 1Ω-500Ω Range ±5% Tolerance and 0~2GHz Frequency for RF Applications
High Power 60W 100R Flange Resistor Product Overview Power Load Sheets, RF Resistors, Flange Resistors, Microstrip Resistors, RF Thick Film Resistors, Microwave Resistors, Load Resistors, Attenuation Resistors, Coupler Resistors Key Features Compact size with high power capacity Excellent high-frequency characteristics Reliable performance and easy installation Ideal for power distributors, isolation resistance and terminal load applications Technical Specifications
RIG42 800W 50Ω Resistor RF cerámico de alta potencia con montura de brida para un rendimiento estable
Las resistencias RF de alta potencia RIG42 (800W-1500W) ofrecen un rango de 1-500Ω con una tolerancia de ±5%. La construcción BeO/Cu garantiza estabilidad de -55 ℃ a +125 ℃. Fabricante OEM con opciones personalizadas, soporte de hojas de datos y certificaciones globales.
High Power 1000W Flange Resistor with ±300*10-6/℃ Temperature Coefficient and -55°C~+125°C Operating Temperature
High Power 1000W Flange Resistor 100 Ohm High Intensity Ceramic Resistor Product Features Small size with high power capacity Stable and reliable performance Easy installation process High intensity ceramic construction Electrical Characteristics Range of nominal resistance: 1Ω-500Ω Resistance tolerance: ±5% Frequency range: 0~2GHz Standing wave ratio: 1.2~1.3 Insulation resistance: ≥ 1GΩ Withstand voltage: 500V/1 mm (Substrate thickness) Physical Characteristics Terminal
