high power wirewound resistor
Resistencia Bobinada Ajustable de Tubo Cerámico BONENS de 2000 Watts con Rango de 1 ohm ~10k ohms y Tolerancia de ±5%
Product Description 1R 5R 8R 10R 50R 70R 100R Ceramic Tube wirewound Variable Resistor 2000 watt Specification NameAdjustable Wirewound ResistorsModelRX20TColorgreenAccessories : thickened Stainless bracket and GasketPower2000 WattResistance1 ohm ~10k ohmsResistance tolerance+/-5%Length430mmDiameter70mmServiceCan be customized according to customer's sizeMaterialEco-friendly paint ceramic tube Packing & Delivery You may interesting Company Profile Factroy Informations:Sichuan
Resistor de frenado de composición cerámica de aluminio de 3000W para aplicaciones de carga
Resistencia a la carga de aluminio de 3000W. Características de resistencia de 1Ω-30KΩ, tolerancia ±5%, coeficiente de temperatura de 150PPM. Certificado ISO9001, TUV, RoHS. Ideal para frenos, pruebas de carga,y aplicaciones de control industrial.

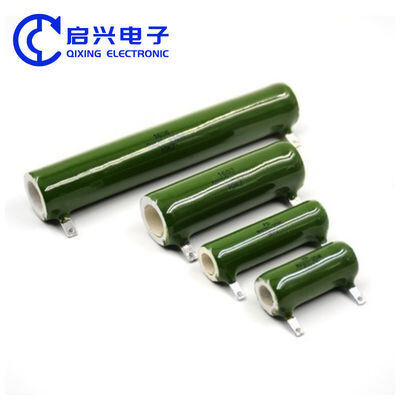

Resistencias de frenado RX20 con cuerda de alambre ajustable con alta potencia y resistencia a la sobrecarga
Product features: Adjustable Wirewound RX20 Braking Resistors with High Power and Overload Resistance Specifications: Power range 10W-10000W. Voltage range- 0.5KV-10KV. Resistance Range 1R-1KR. Pressure- AC2500V / 1min50Hz. IP rating IP00. Rated temperature- 375 ℃, short-term / repeat 40% ED. Thermal equilibrium time constant τ = 200s. Advantages High voltage. Packing-- carton packaging. Disadvantages poor shock resistance Applications: simulated loads, discharge equipment,
Resistencia de frenado fija de 2500 W con 1Ω-1KΩ de resistencia y tolerancia ±5%
Product Description Namebraking resistorModelRX20Performancehigh powerShapeCylindrical ceramic tubeMaterialWirewoundRated power2500 WResistance1 ohms~10KResistance tolerance±5%DiameterD=70mmLengthL1=4300mmMounting bracketsIncludingNon-standard sizeCan be customized Adjustable type Packing & Delivery Company Profile Sichuan Qixing Electronics CO.,LTD specialize in potentiometers, resistors and EMI filters for 13 years. Our products have CE ,ISO certification and ROHS licenses
Resistencia de Frenado Bobinada Verde de 3000W con Baja Inductancia y Tamaño Personalizable
Product Description Green ripple wirewound painted Braking Resistor 3000W Product namePainted Tubular Ceramic Inductive ResistorRated Power : 3000WType : FixedSize: 430mm length & 80mm diameter (Can be customized according to customer requirements)ColorGreenResistance value:1R 2R 3R 4R 6R.......10KRResistance tolerance: ±1%(F), ±2%(G), ±5%(J), ±10%(K)Temperature Coefficient≤±250ppm/℃Ambient temperature -55℃～+155℃ApplicationLoad test, equipment discharge, automatic control,
BONENS RX20-50W-12R 50W 12 Ohm tubo de cerámica Wirewound resistor ajustable variable con una tolerancia del 5%
Product Description 50W Ceramic Tube Wirewound Variable Resistor 12 ohm Specification Namebraking resistorModelRXG20Performancehigh powerShapeCylindrical ceramic tubeMaterialWirewoundRated power50WResistance12 ohmsResistance tolerance±5%DiameterD=28mmLengthL1=90mmMounting bracketsIncludingNon-standard sizeCan be customizedAdjustable typeCan be offered You may also like Company Profile

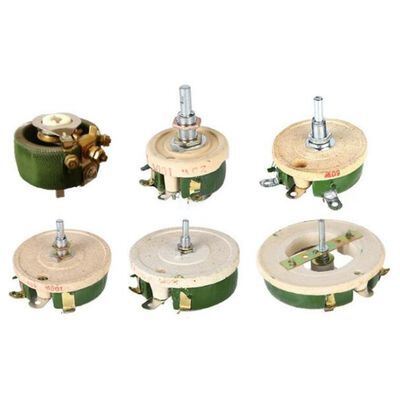

BC1 Reostato de resistencia cerámica de cuerda de alambre 25W-3000W 10k ohm
BC1 disc adjustable resistance electric welding machine generator current adjustable resistance 100W product name: BC1 -type rotor -type variable resistor/BC1 disc adjustable resistor/BC1 disk variable resistor/BC1 variable resistor/BC1 porcelain disk resistor/BC1 porcelain disk resistor Circular disk resistor BC1 25W 50W 100W 200W 300W 1K adjustable potentiometer wire wound ceramic disk resistor product description: 1. High power wirewound sliding rheostat are wound with
Reostato de potencia 500watt Slide Wire Atado Reostato Reostato Resistente
Wirewound adjustable resistor rheostat 25W 500W 100W 1.BC1 High power wirewound sliding rheostat are wound with chromium-alloy wire as a resistor element. 2.The entire component is coated non-flammable and high-temperature resin exception for the slide contact surface. 3.After cooling and drying, insulation is applied through a high-temperature process. Installed centered roating adjuster component slides along the resistance element to vary the to the desired value. 4.High
RX24 50w 6RJ Resistente de carga de potencia de alta tensión de 6 ohms
RX24 50w 6RJ Gold Aluminum Housed Wirewound resistor 6ohm High Power Load Resistor describe: RX24 gold resistors have the characteristics of high power, small size, strong overload capability, solid structure, and high reliability; they are widely used in power supplies, frequency parameter: Rated power range: 5W~50W Operating voltage range: 100MΩ △R/R≤±0.5% IEC60115-1 4.6 Insulation withstand voltage UN,60S,I≤1mA △R/R≤±1% IEC60115-1 4.7 Durability Min(UP,UR),1.5H-ON,0.5H-OFF
